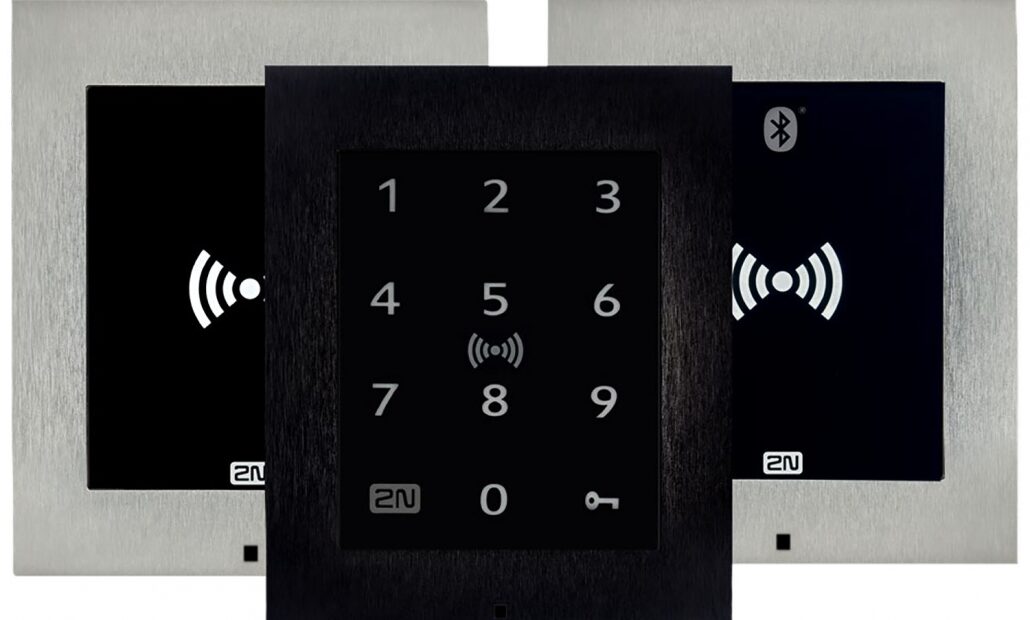

2N Access Unit 2.0

• ACCESS SECURITY

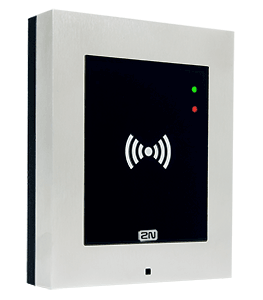

  Use 2N^® Access Unit RFID to prevent unauthorised access to a building, ensuring the highest level of security for all people in the building.

• 2N^® REMOTE CONFIGURATION
  Save time and money for onsite support thanks to our free service. Access all your devices remotely via secured cloud connection. Fastest response to your customers requests.

• NFC SUPPORT
  Thanks to wireless NFC technology, you can easily open the door using a smartphone with the 2N^® Mobile Key application installed.

• ADVANCED EVENT REPORTING
  The 2N^® Access Unit RFID not only allows logs to be sent to the Syslog server, but also e-mail notifications to building security or an HTTPs command to a third-party system for selected events.

• WEB INTERFACE ADMINISTRATION
  Simply connect the access control unit to your LAN and everything can be set up via the intuitive web interface.

• TAMPER PROTECTION
  2N^® Access Unit RFID is equipped with a mechanical protective switch. As soon as anyone attempts to damage the unit mechanically, the switch is activated and an alarm is set off.

• MONITORING ENTRANCES AND EXITS
  Other expansion modules (e.g. an exit RFID reader, keypad, or Bluetooth etc.) can be connected to the 2N^® Access Unit RFID, allowing you to secure a door easily from both sides.

• INDOOR AND OUTDOOR USE
  Thanks to its mechanical properties, the 2N access control unit is designed for either indoor or outdoor installation.

• SIMPLE INSTALLATION
  A single ethernet cable, Power over Ethernet, and the option to connect a lock, exit button, or door contact directly to the unit make installation very simple.

Brochure

Audio

Speaker
0.8 W / 8 O

Interface

Power:
12 V ±15% / 2 A DC (3 A if there is a larger number of modules) and/or PoE
PoE:
PoE 802.3af (Class 0 – 12.95W)
LAN:
10/100BASE-TX s Auto-MDIX, connecting block or RJ-45 pigtail
Recommended cabling:
Cat-5e or better
Supported protocols:
DHCP opt. 66, SMTP, 802.1x, TFTP, HTTP, HTTPS, Syslog
Passive switch:
make and break contact, max. 30 V / 1 A AC/DC
Active switch output:
8 to 12 V DC according to power source (PoE: 10 V; adapter: source voltage minus 2 V), max 400 mA
Inputs:
Can be used in passive or active mode (-30 V to +30 V DC)
OFF = disconnected or Uin > 1.5 V
ON = shorted or Uin < 1.5 V

RFID card reader

Frequency:
13.56 MHz
Supported cards 13.56 MHz (only card serial number read)
ISO14443A: Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant
ISO14443B: Calypso, CEPAS, Moneo, SRI512, SRT512, SRI4K, SRIX4K, PicoPass, HID iCLASS

NFC reader

Supported devices:
smartphones with NFC and HCE support (Host Card Emulation)
version Android 4.3 and higher

Mechanical properties

Cover:
Robust zinc cast with surface finish
Operating temperature:
-40°C to 60°C
Operating relative humidity:
10%-95% (non-condensing)
Storage temperature:
-40°C to 70°C
Dimensions:
Frame for fitting on surface: 107 (W) x 130 (H) x 28 (D) mm
Frame for recess fitting in wall: 130 (W) x 153 (H) x 5 (D) mm
Box for mounting in wall (dimension of minimum hole in wall): 108 (W) x 131 (H) x 45 (D) mm
Weight:
Max net weight: 2 kg / max gross weight: 0.5 kg – Depends on configuration
Cover rating:
IP54

Expansion modules

Supported modules:
modules are supported from the 2N® Helios IP Verso intercom – RFID card reader (125kHz; 13,56MHz), keypad, five-button module, Wiegand, etc.
