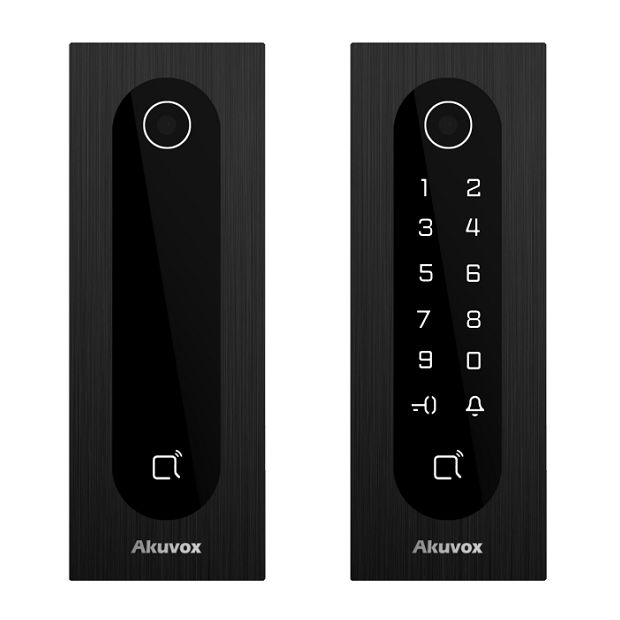

Akuvox A08 Slim Access Control Reader
The new Akuvox A08 mullion-style access control reader is ideal for both residential and office controlled access applications; the narrow, sleek design makes it ideal for locations with limited spaces – particularly doors frames.
The Akuvox A08 is available with a variety of authentication methods:
- RFID
- NFC smartphone authentication
- QR Code Scanning for ‘temporary virtual keys’
- Bluetooth smartphone authentication
- Pin Code Keypad
This latest access control unit also supports dual authentication, providing even greater levels of secure identity verification.
The Akuvox A08 at a glance:
- Slim format housing – ideal for limited space installation locatrions such as door frames / door mullions
- Aluminum body
- Multiple access control authentication (RFID, NFC, Bluetooth, PIN code)
- QR code scanning for ‘temporary key’ access
- 1 port interface for Relay out
- Wiegand (W26/W34/W58) protocol
- BLE 5.0
- IK07 & IP65 for outdoor / high impact locations
Specifications
| Front shell material | Surface tempered glass/shell aluminum panel 5052 |
| Back shell material | PC |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Flash | 128MB |
| RAM | 64MB |
| Network Port | 1RJ45, 10/100Mbps adaptive |
| Power Input | 12V/1A DC |
| Power Output | 12V/ max 500mA |
| Camera Angle | FOV：77.1° |
| Power Consumption | Not higher than 12W |
| Operating temperature | -20～+55 degrees Celsius |
| Storage temperature | -30～+70 degrees Celsius |
| Working Humidity | 10%～95% |
| Dimensions | 140 (H) x 50 (W) x 26.7 (D) mm |
| Weight (Net) | 0.80kg |
| Weight (Gross) | 0.80kg |
