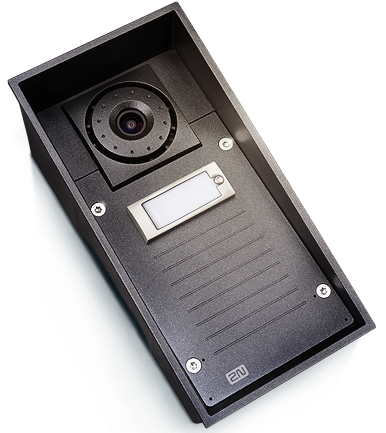

 Products

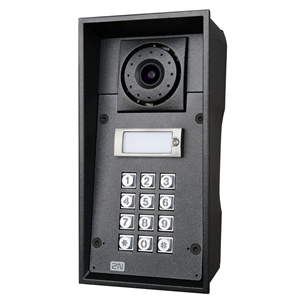

Helios IP Force
Helios IP Verso

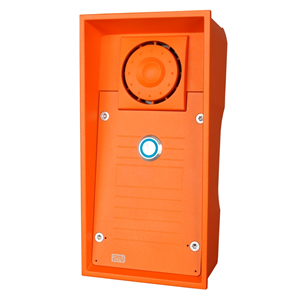

Helios IP Safety
Helios IP Vario
Helios IP Uni
Indoor Touch
Access Unit
|
|
|

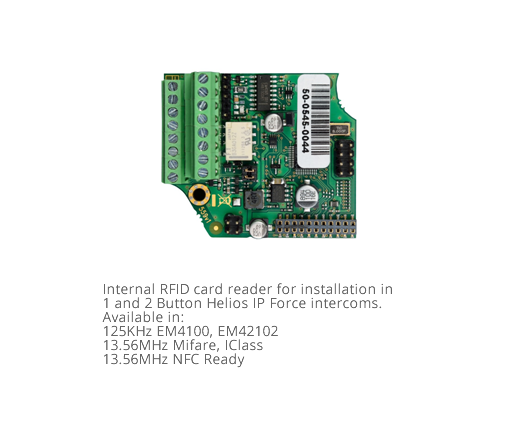

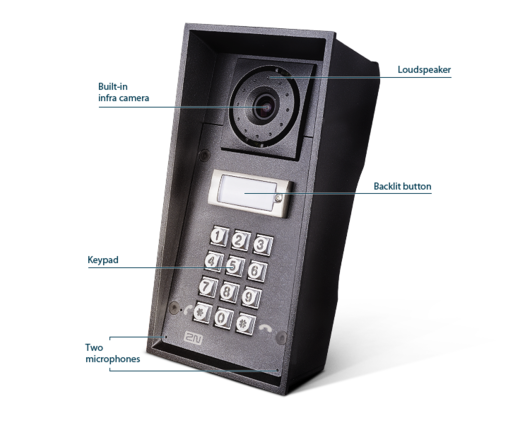

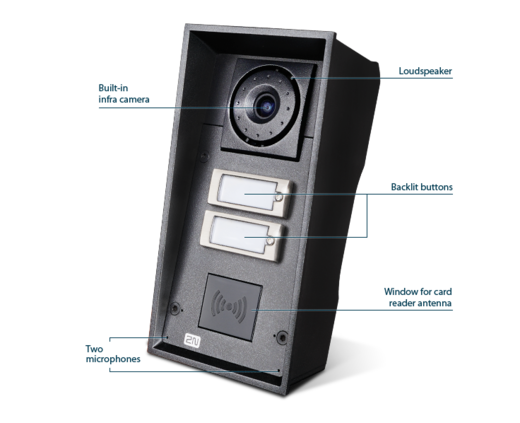

Power supply
802.3af (PoE) 48 V / 380 mA DC
or
Adaptor 230 V10%,
50/60 Hz / 12V DC
DC power supply 12 V / 2A DC
VoIP
Signalization
SIP
Number of voice channels
2
Audio Codecs
G.711, G.729
Video Codecs
H.264, 64 – 2048 kbit/s
H.263
H.263+
Interfaces
Ethernet
Connector RJ-45
Ethernet speed 10/100 BASE-T

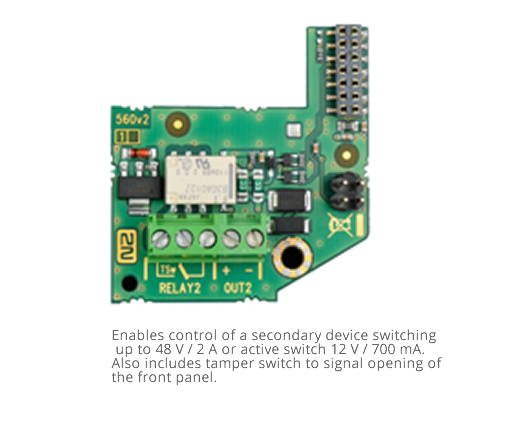

Reley outputs
Maximal voltage 30 V DC
Maximal current 1 A DC
Active output
9V – 13V DC/700mA
|
Audio & Video
Audio
2 integrated microphones
10W D-Class amplifier
Fullduplex (AEC)
Video
Camera 640 (H) x 480 (V)
View angle 135° (H), 109° (V)
IR Night Vision
HD Video
Camera 1280px (H) x 960px (V)
View angle 135° (H) x 109° (V)
Other

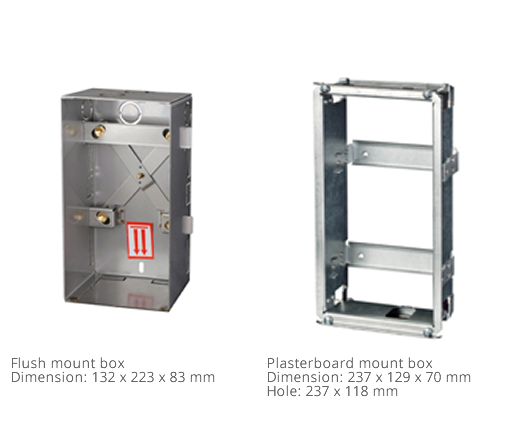

Dimensions
217x109x83 mm (H x W x D)
242x136x83 mm (H x W x D) with a frame
Weight
max. 2000 g
Operating temperatures
from –40 to +55 ºC
Cover level
IP65, selected models IP69K
|
|
|
|
Brochure Configuration Manual Installation Manual Model Numbers
|
|
|

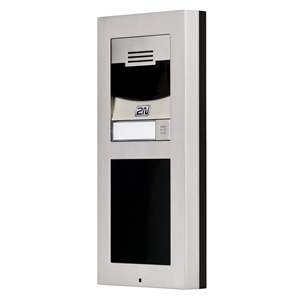

Signalling protocol
SIP 2.0 (RFC - 3261)
Buttons
Quick dial buttons
Transparent, white backlit buttons with easily replaceable name tags
Number of buttons
1 to 146
Numeric keypad
optional
Audio
Microphone
1 integrated microphones
Loudspeaker
2W
Audio stream
Codecs
G.711, G.729
Camera
Resolution – JPEG
1280 x 960 px
Resolution – video call
640 x 480 px
View angle
120° (H), 90° (V), 145° (D)
IR Night Vision
yes
Video stream
Codecs
H.263+, H.263, H.264, MJPEG, MPEG-4
RFID card reader
Supported cards
Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant Calypso, CEPAS, Moneo, PicoPass, HID iCLASS
|
Interface
Power supply
12V±15%/2A DC or PoE
PoE
PoE 802.3af (Class 0 - 12.95W)
LAN
10/100BASE-TX with Auto-MDIX, RJ-45
Relay outputs
NC/NO contacts, max 30V/1A AC/DC
Active output
8V – 12V DC/400mA
Mechanical
Operating temperature range
-40°C – 60°C
Storage temperature range
-40°C – 70°C
Relative humidity
10% - 95% (not condensing)
Protection level
IP 54

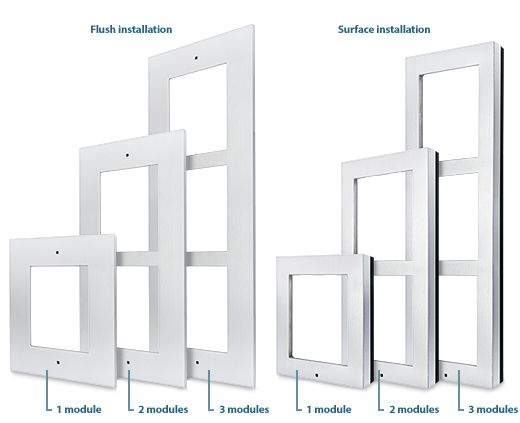

Dimensions
Wall-mounted 1 module
107x130x28 mm
Wall-mounted 2 modules
107x234x28 mm
Wall-mounted 3 modules
107x361x28 mm

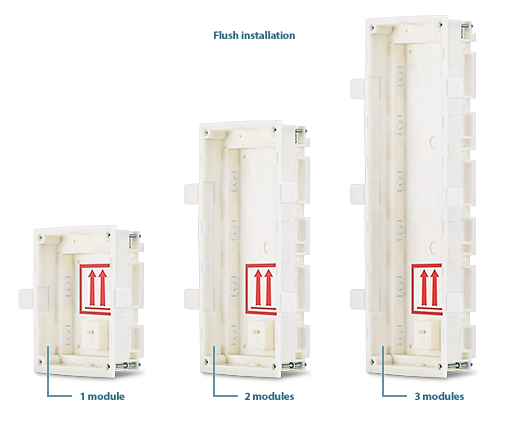

In-wall 1 module
130x153x5 mm
In-wall 2 modules
130x257x5 mm
In-wall 3 modules
130x361x5 mm
|
|
|
|
Brochure Configuration Manual Installation Manual Model Numbers
|
|
|

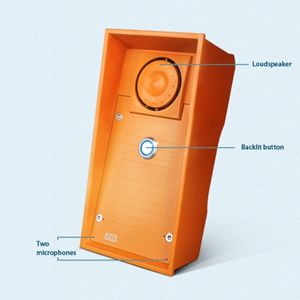

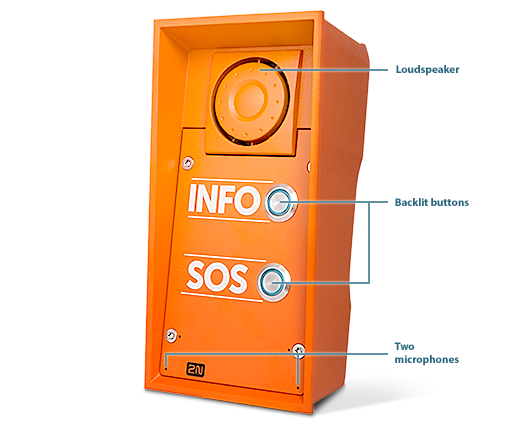

Power supply
802.3af (PoE) 48 V / 380 mA DC
or
Adaptor 230 V10%,
50/60 Hz / 12V DC
DC power supply 12 V / 2A DC
VoIP
Signalization
SIP
Number of voice channels
2
Audio Codecs
G.711, G.729
Audio
Audio
2 integrated microphones
10W D-Class amplifier
Fullduplex (AEC)
|
Interfaces
Ethernet
Connector RJ-45
Ethernet speed 10/100 BASE-T
Reley outputs
Maximal voltage 30 V DC
Maximal current 1 A DC
Active output
9V – 13V DC/700mA
Other
Dimensions
217x109x83 mm (H x W x D)
242x136x83 mm (H x W x D) with a frame
Weight
max. 2000 g
Operating temperatures
from –40 to +55 ºC
Cover level
IP65, IP69
|
|
|
|
Brochure Configuration Manual Installation Manual Model Numbers
|
|
|

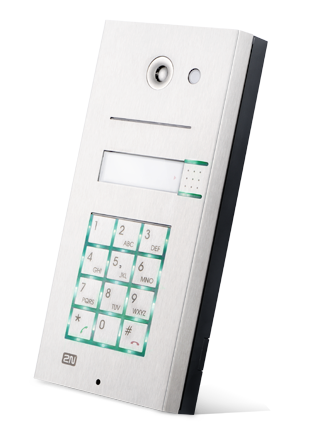

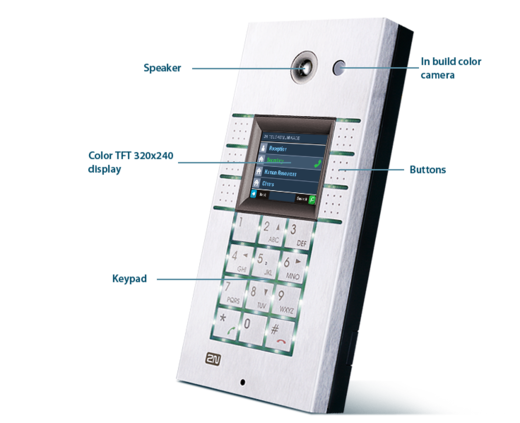

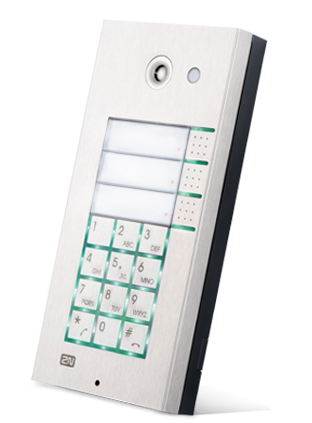

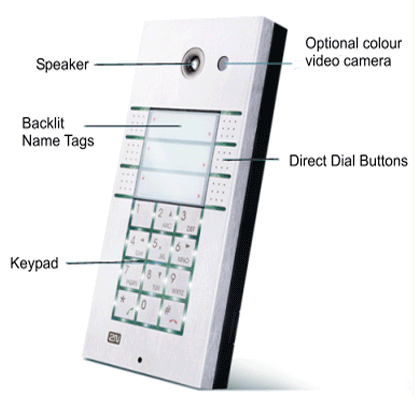

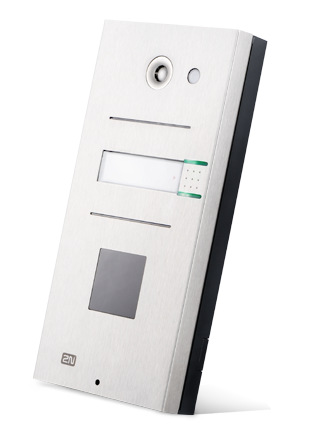

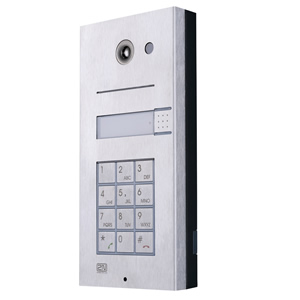

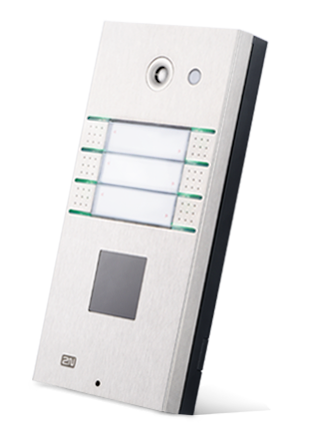

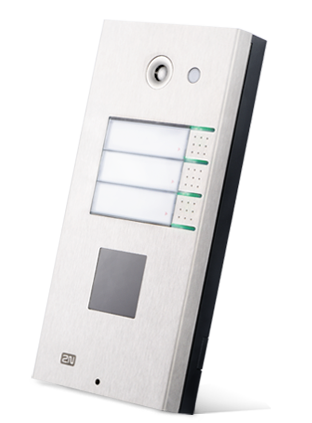

Power supply
802.3af (PoE) 48 V / 380 mA DC
or
Adaptor 230 V10%,
50/60 Hz / 12V DC
DC power supply 12 V / 2A DC
VoIP
Signalization
SIP
Number of voice channels
2
Audio Codecs
G.711 PCM, 64 kbps
G.729
Video Codecs
H.264, 64 – 2048 kbit/s
H.263
H.263+
Interfaces
Ethernet
Connector Screw plug
Ethernet speed 10/100 BASE-T
Reley outputs
Maximal voltage 30 V DC
Maximal current 1 A DC
Active output
10V – 14V DC/700mA
|
Other
Dimensions
210x100x29 mm (h×w×d)
Weight
max. 500 g
Operating temperatures
from –20 to +55 ºC
Cover level
IP 53
|
|
|
|
Brochure Configuration Manual Installation Manual Model Numbers
|
|

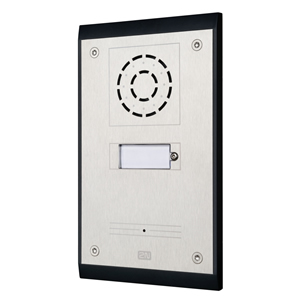

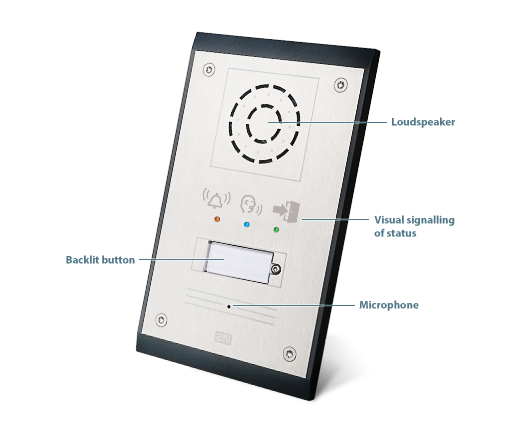

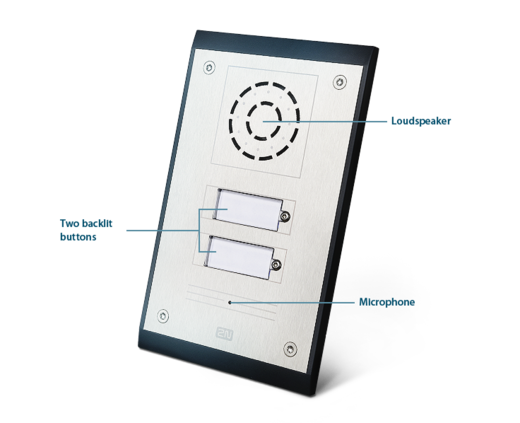

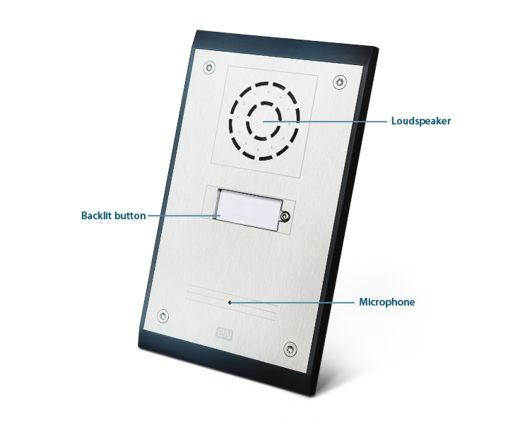

Power supply
802.3af (PoE)
48 V / 380 mA DC
or
Adapter
230 V ± 10%, 50/60 Hz / 12V DC
DC power supply 12 V / 2A DC
VoIP
Signalling protocol
SIP
Number of voice channels
2
Audio codices
G.711 PCM, 64 kbps
|
Interface
Ethernet
Connector – RJ45
Transmission speed 10/100 BASE-T
Active output
8V – 12V DC/500mA
Passive relay output
Maximum voltage 30 V DC
Maximum current 1 A DC
Other
Dimensions
193 x 115 x 39 mm (h×w×d)
Weight
500 g
Operating temperature
–40 to +55 ºC
Cover level
IP 54
|
|
|
|
Brochure Configuration Manual Installation Manual Model Numbers
|
|
|
Power supply
802.3af (PoE)
48 V / 380 mA DC
or
Adapter
230 V ± 10%, 50/60 Hz / 12V DC
DC power supply 12 V / 2A DC
VoIP
Signalling protocol
SIP
Number of voice channels
2
Audio codices
G.711 PCM, 64 kbps
|
Interface
Ethernet
Connector – RJ45
Transmission speed 10/100 BASE-T
Active output
8V – 12V DC/500mA
Passive relay output
Maximum voltage 30 V DC
Maximum current 1 A DC
Other
Dimensions
193 x 115 x 39 mm (h×w×d)
Weight
500 g
Operating temperature
–40 to +55 ºC
Cover level
IP 54
|
|
|
|
Brochure Configuration Manual Installation Manual Model Numbers
|
|
|

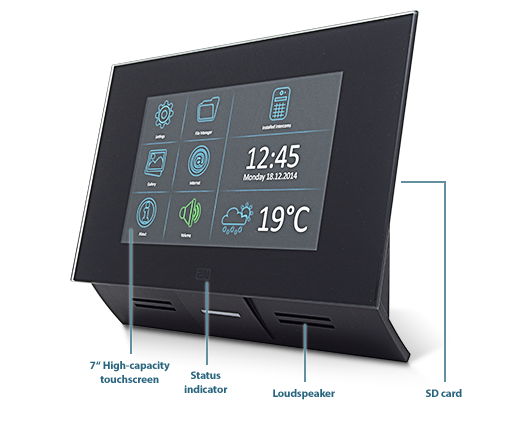

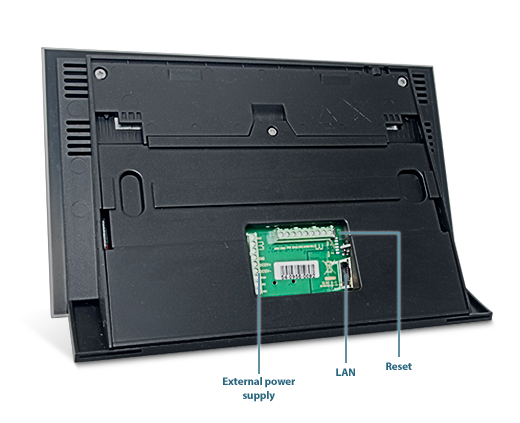

Signalling protocol
SIP
Power
Type:
External power adapter 12V DC 2A / PoE 802.3af
Power input:
10 W
User interface
Control:
High-capacity touchscreen 16:9
Display size:
7"
Resolution:
1024x600px 24bpp (16.7 million colours)
Backlighting:
LED with energy-saving mode
Status indicator:
1x RGB LED (missed calls, energy-saving mode etc.)
Operating system
Android 4.2
Audio
Microphone:
Integrated
Speaker:
1x2W integrate
|
Video
Protocol RTSP, MJPEG/HTTP
Intercom supervision and control:
Yes
IP camera supervision:
Yes
Interface
LAN:
Ethernet 10/100BaseT, RJ–45,
Recommended cabling Cat5e or higher
Memory card:
MicroSD card (SDHC, up to 16 GB)
GPIOs
Mechanical parameters
Wall mounting
Dimensions (W x H x D):
235x165x40 mm
Weight:
850g
Operating temperature:
0°C – 60°C
Operating relative humidity:
10%-90% (non-condensing)
Storage temperature:
-20°C to 70°C
|
|
|
|
Brochure Model Numbers
|
|
|

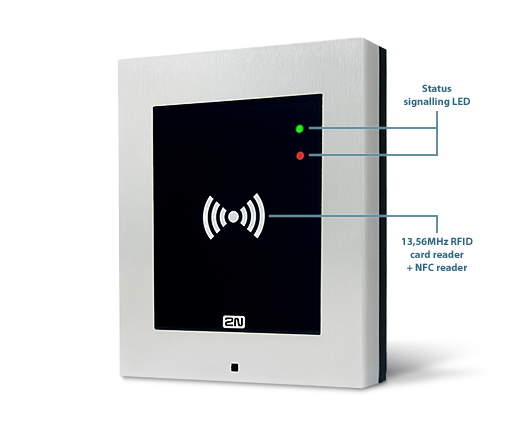

Audio
Speaker
0.8 W / 8 O
Interface
Power:
12 V ±15% / 2 A DC (3 A if there is a larger number of modules) and/or PoE
PoE:
PoE 802.3af (Class 0 - 12.95W)
LAN:
10/100BASE-TX s Auto-MDIX, connecting block or RJ-45 pigtail
Recommended cabling:
Cat-5e or better
Supported protocols:
DHCP opt. 66, SMTP, 802.1x, TFTP, HTTP, HTTPS, Syslog
Passive switch:
make and break contact, max. 30 V / 1 A AC/DC
Active switch output:
8 to 12 V DC according to power source (PoE: 10 V; adapter: source voltage minus 2 V), max 400 mA
Inputs:
Can be used in passive or active mode (-30 V to +30 V DC)
OFF = disconnected or Uin > 1.5 V
ON = shorted or Uin < 1.5 V
RFID card reader
Frequency:
13.56 MHz
Supported cards 13.56 MHz (only card serial number read)
ISO14443A: Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant
ISO14443B: Calypso, CEPAS, Moneo, SRI512, SRT512, SRI4K, SRIX4K, PicoPass, HID iCLASS
|
NFC reader
Supported devices:
smartphones with NFC and HCE support (Host Card Emulation)
version Android 4.3 and higher
Mechanical properties
Cover:
Robust zinc cast with surface finish
Operating temperature:
-40°C to 60°C
Operating relative humidity:
10%-95% (non-condensing)
Storage temperature:
-40°C to 70°C
Dimensions:
Frame for fitting on surface: 107 (W) x 130 (H) x 28 (D) mm
Frame for recess fitting in wall: 130 (W) x 153 (H) x 5 (D) mm
Box for mounting in wall (dimension of minimum hole in wall): 108 (W) x 131 (H) x 45 (D) mm
Weight:
Max net weight: 2 kg / max gross weight: 0.5 kg – Depends on configuration
Cover rating:
IP54

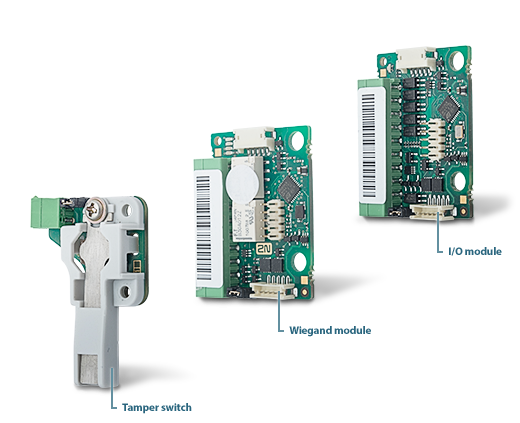

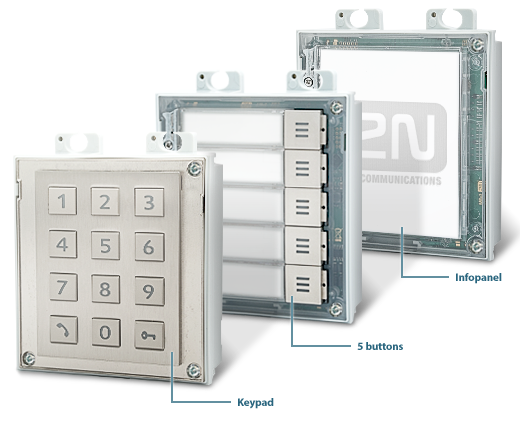

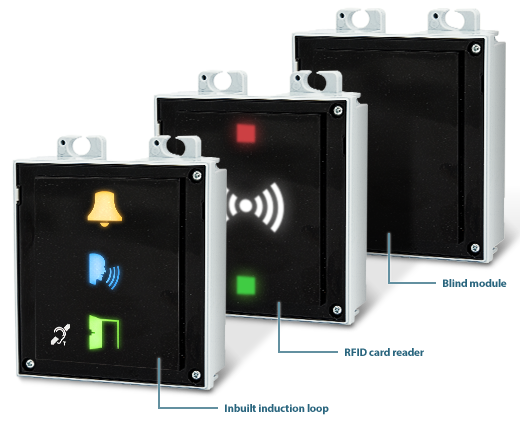

Expansion modules
Supported modules:
modules are supported from the 2N® Helios IP Verso intercom – RFID card reader (125kHz; 13,56MHz), keypad, five-button module, Wiegand, etc.
|
|
|
|
